Arduino: LCD with ST7070 Driver (Noiasca Liquid Crystal I2C)

The ST7070 LCD uses an extended character set, which makes printing of letters for lot of European languages very easy.

ST7070: Serial or Parallel

The ST7070 display can be used in 8bit or 4bit mode. It is very similar to the HD44780U module. My ST7070 LCD is equipped with an additional header for serial communication (3 und 4 wire SPI). There is a coding jumper on the LCD to choose either the s-serial or  p-parallel interface:

LCD mit deutschen Umlauten für Arduino

After coding to p-parallel, the liquid crystal library can use an I2C PCF8574 out of the box.

The Character Sets of the ST7070 LCD

The character set of the ST7070 contains much more characters than the standard Hitachi HD44780U A00 ROM. In total 240 characters are defined:

Alle Sonderzeichen inkl. deutscher Umlaute am LCD für Arduino

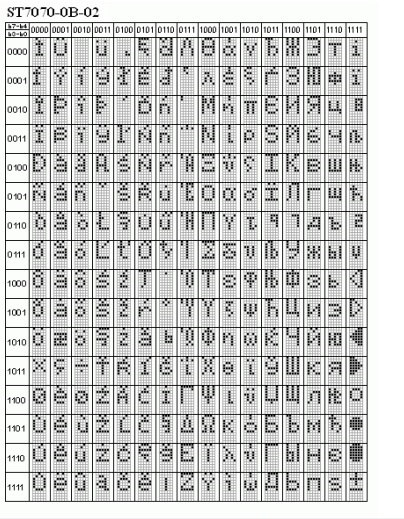

Additional 256 characters can be found in pattern 2:

There are some interesting facts to know:

  • In column 0001 starts the Latin-1 character set used for "Western European" languages (ISO/IEC 8859-1).
  • The columns 0011 - 0111 and 1100 - 1100 are compatible to the HD44780 character set A00. The ST7070 display can be used as direct replacement for a Hitachi HD44780 LCD.
  • In column 1000 - 1010 there are more special characters like § © ® ™ larger/equal to, smaller/equal to.
  • In contrast to the HD44780 the ST7070 has usable second character set ("pattern 2"). It gives you additional 256 characters on the same chip. In pattern 2 there is the rest of the Latin-1 letters, additional letters from Latin-2 (Eastern European Languages) and Cyrillic letters for Russian or Ukrainian.
  • To activate the second pattern you have to set the same registers like to blink the HD44780 cursor. Switching off "blinking" will return to the pattern 1.
lcd.blink();    // activate pattern 2 on ST7070
lcd.noBlink();  // activate pattern 1 on ST7070

Arduino Library for the ST7070 LCD

As mentioned already the ST7070 should work with just any Liquid Crystal Library. Printing of special characters might get difficult, therefore I wrote the Library "Noiasca Liquid Crystal". This library offers the easy support for special characters. There are two different ST7070 constructors: in Noiasca Liquid Crystal for the ST7070:

LiquidCrystal_PCF8574 lcd(addr, cols, rows, convert_ST7070);

enables the easy access to Latin-1 (Western European languages). This includes for example German, Norwegian, Swedish, Spanish, Italian.

More special characters from Latin-2 can be used with the extended constructor:

LiquidCrystal_PCF8574 lcd(addr, cols, rows, convert_ST7070_ext);

which will be needed for French, Hungarian, Czech, Slovakian, Slovenian, Croatian, Polish,  ...

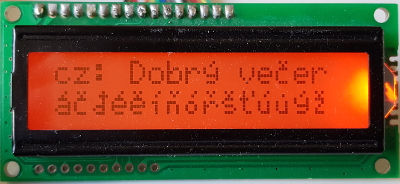

The library contains an example sketch to show up lot of special characters used in European languages:

Additionally I have implemented the Cyrillic mapping in the extended ST7070 converter.

Nowadays the ST7070 LCD are hard to find. If you need support for European languages, the a LCD with SPLC780D1 003A chip might be easier to find.

Summary

The ST7070 LCD is a nice solution if you want to use a character LCD for southern or eastern European Languages. The ST7070 has full support of Latin-1 and Latin-2. Even some characters from Latin-3 are available. If you need an easy to use Arduino library, use the "Noiasca Liquid Crystal" with the prepared constructors for the ST7070 chip.
